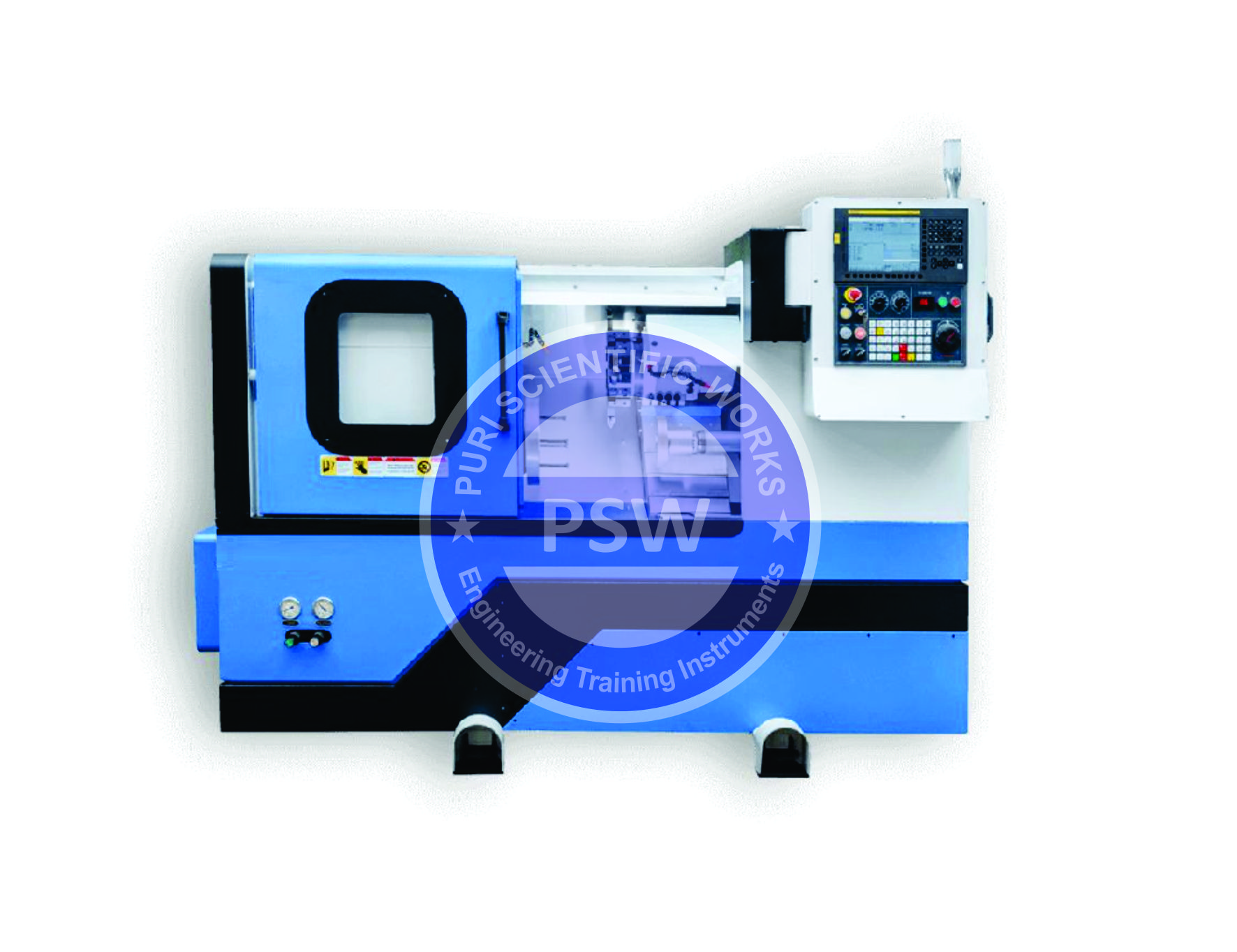

CNC Lathe/CNC Turn Centre
Model No :-
PSW/WM/6011
Delivery :- EXW
Minimum Order :- 1 Set
Supply Ability :- 5 Set / month
Country of Origin :- Haryana, India
Note :- We provide products customized to your requirements.
Description
| Specifications | CNC- 200 | CNC – 250 | CNC – 400 | CNC – 400 /500 |
| Capacity
Max. Turning Dia. Max. Turning Length Swing Over Bed Std. Turing Dia. |
200 mm 300 mm 300 mm 165 mm |
250 mm 500 mm 400 mm 200 mm |
400 mm 750 mm 500 mm 300 mm |
400/500 mm 1000/1500 mm 600 mm 350 mm |
| Main Spindle
Spindle Nose Bore Through Spindle Bar Capacity Chuck Size Front Bearing Bore |
A2-5 38 mm 25 mm 165 mm 80 mm |
A2-6 55 mm 42 mm 200 mm 90 mm |
A2-6 /A2-8 55/75 mm 42/62 mm 200/250 mm 90/100 mm |
A2-8 75 mm 62 mm 305 mm 100 mm |
| Spindle Drive
Spindle Motor Power Speed Range (RPM) |
5.5/7.5 Kw 1000-3500 |
7.5/11 Kw 1000-3500 |
5.5/7.5 Kw 1000-2500 |
11/15 Kw 750-2500 |
| Axis Slides
X – Axis Stroke Z – Axis Stroke Rapid Traverse: X- Axis Rapid Traverse: Z- Axis |
140 mm 300 mm 24 M/Min 24 M/Min |
170 mm 500 mm 24 M/Min 24 M/Min |
250 mm 775 mm 24 M/Min 24 M/Min |
225/275 mm 1050/1550 mm 24 M/Min 24 M/Min |
| Tail Stock
Quill Dia. Quill Stroke Taper in Quill |
70 mm 80 mm MT-3 |
80 mm 100 mm MT – 4 |
80 mm 100 mm MT – 4 |
100 mm 100 mm MT – 5 |
| Turret
Turret Type Turret No. of Stations Max. Boring Bar Dia. Tool Cross Section |
Ele, Mech / Hyd. BTP – 63 8 32 mm 20 mm |
Ele Mech/Hyd. BTP-80 8 40 mm 25 mm |
Ele Mech/Hyd. BTP-80 8 40 mm 25 x 25 mm |
Ele Mech/Hyd. BTP-100 8 40 mm 25 x 25 mm |
| Accuracy
Position Accuracy Repeatability |
0.015 mm ± 0.003 mm |
0.015 mm ± 0.003 mm |
0.015 mm ± 0.003 mm |
0.015 mm ± 0.003 mm |
*Specifications may be modified without prior notice, in accordance with ongoing improvements or updates.
